About Hayssen X850

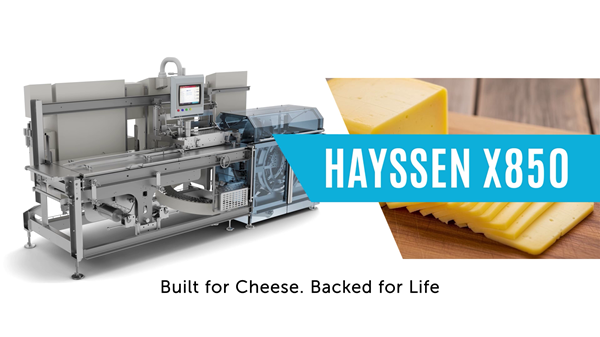

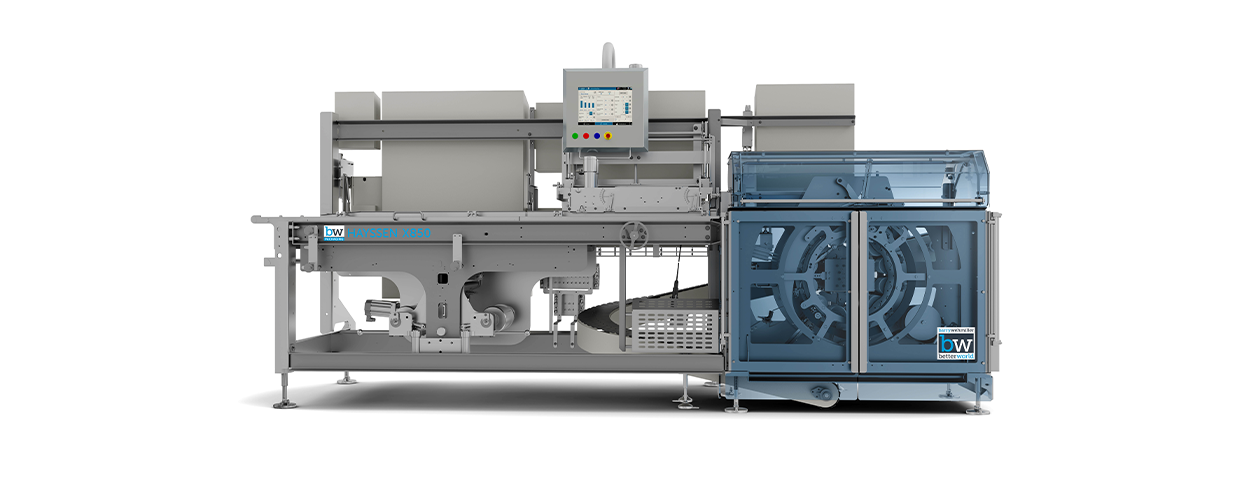

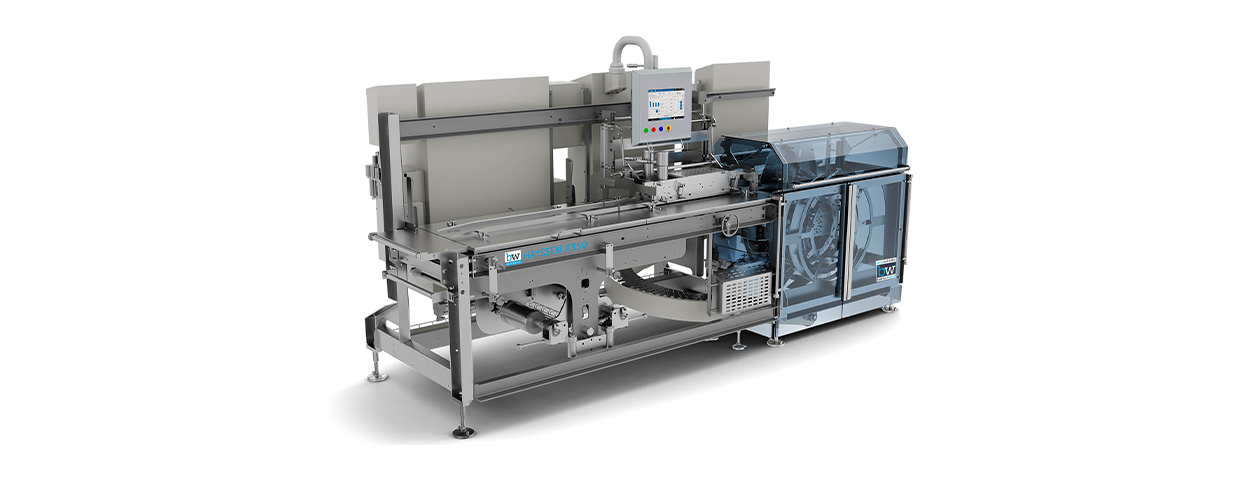

The Hayssen X850 flow wrapper is a multi-jaw flow wrapper specially designed to address the packaging requirements of products that require high seal integrity at high speeds, such as cheese. Featuring patented individual-ring technology and quick-release jaw design, the Hayssen X850 flow wrapper machine is unlike anything else on the market today.
The Hayssen X850 meets the requirements of today’s manufacturer through its stainless-steel frame for IP66 washdown, hygienic sloped surfaces and independent temperature control that will run various types of zippers and films, including recyclable materials.
With high throughput, the Hayssen X850 cycles up to 300 packs per minute (PPM) with over 1 second of dwell time and detects and clears product jams without stopping. Its film unwind system allows operators to easily fine-tune film tracking, enabling easy film loading and reducing downtime, while the servo jaw control minimizes wear and maintenance.

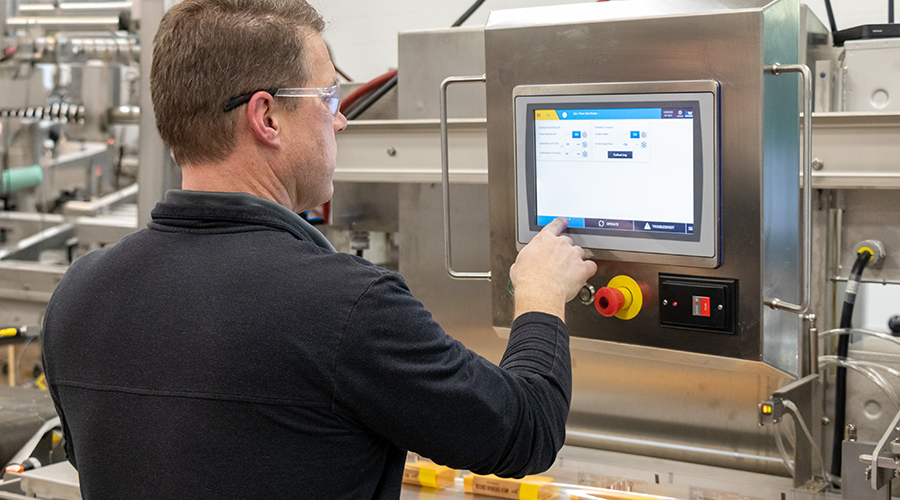

The Hayssen X850 also offers several smart features, such as RFID login and advanced OpView™ HMI standard on every machine.
Product Details
High Throughput
- Detects and clears product jams without stopping
- Cycles up to 300 ppm with over 1 second of dwell time
- Servo jaw control minimizes wear and maintenance
Simplified Operation
- Independent top and bottom jaw temperature control
- Servo film edge tracking for consistent long seal
- Auto splice on the fly with pivoting spindles

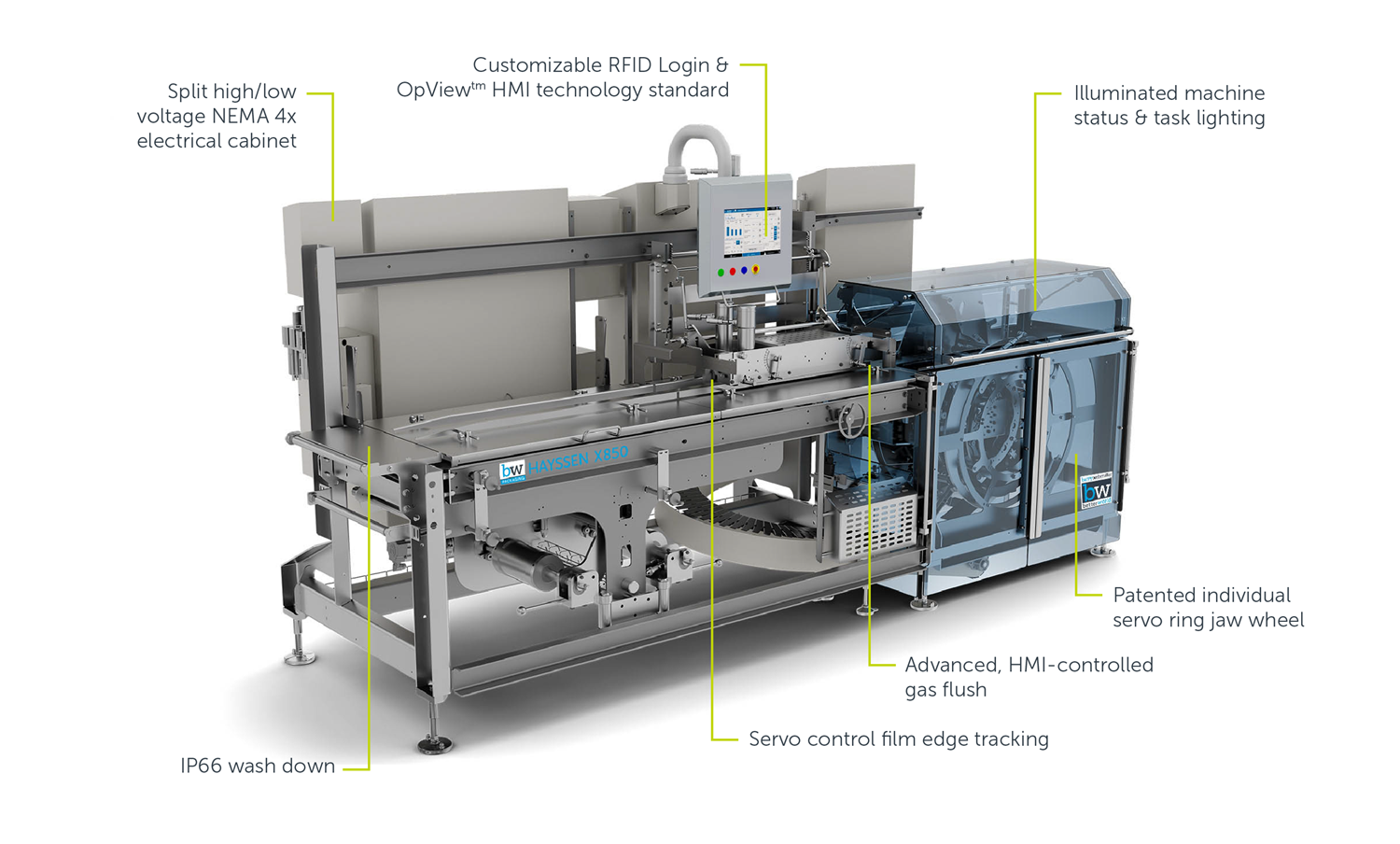

Innovative Design
- Patented individual ring technology with quick release jaw design
- Segmented and easily accessed single plane machined cams
- Engineered to seal various types of zippers and films including recyclable
Technical Data
Machine height: 85” (2159 mm)
Machine length: 162” (4115 mm)
Machine width: 55” (1397 mm)
Max product height: 4” (102 mm)
Max bag length: 14” (356 mm)
Max flat bag width: 8” (203 mm)
Max reel diameter: 18” (457 mm)
Nominal bed height: 42” (1067 mm)
Electrical: 480V 3ph – 60A
Options
Packaging Styles
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
