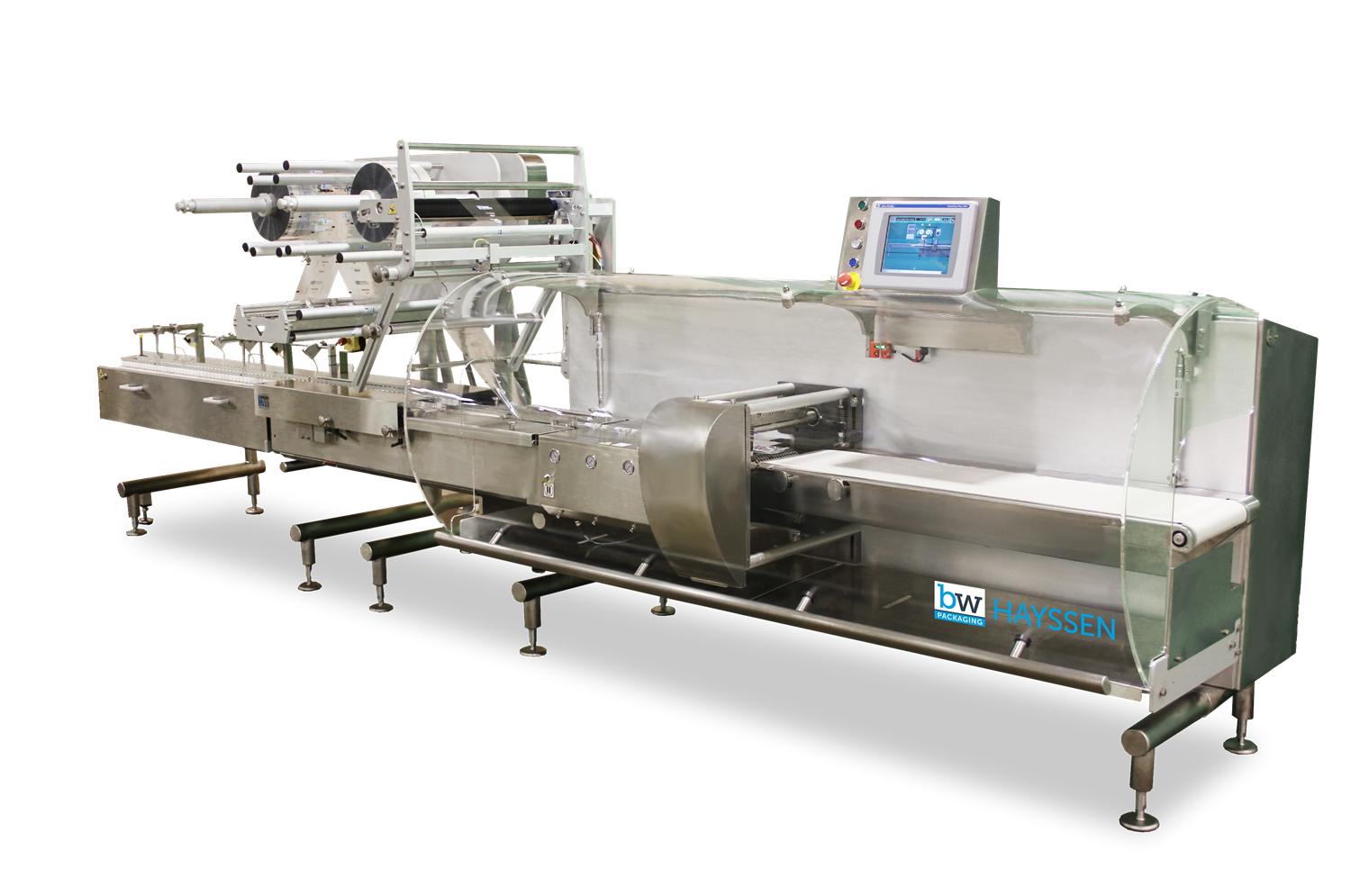

Hayssen Minerva
About Hayssen Minerva
The Minerva is a horizontal flow-wrapper packaging machine suitable for wrapping a large variety of food and non-food products with high-speed capabilities and pre-arrangement for complete automation.
The Minerva distinguishes itself through innovative engineering that focuses on delivering exceptional performance in challenging environments. It is a PLC-controlled horizontal rotary form-fill-seal machine with five independent motors and rotary sealing jaws.
Product Details
- Hygienic and easy-to-clean design suitable for a wide range of challenging industries
- Sloped tops and rounded legs minimize debris build up
- Versatility throughout a wide range of packaging applications
- Icon-based operator interface with real time diagnostics
- Straightforward and intuitive set up features for fast, repeatable changeovers
- ‘No product — no bag’ feature minimizes film waste
- Misplaced products detect
- Reel Low / Run-Out with Beacon Alarm
- Easy film thread system for a quick change-over and reel replacement
- Adjustable or fixed folding box
- Options of standard chain infeed or range of multi-belt feeders
Technical Data
Production Rate- Mechanical speed range up to 500 ppm with multiple jaws setup (film & product pending)
- Length: 50-500 mm
- Width: 20-300 mm
- Height: up to 120 mm
- Europe: 380/420V 50 Hz, Three Phase + Neutral
- USA: 440/480V 60 Hz, Two Phase + Neutral
- Air Supply: 6 bar
Options
Packaging Styles
Videos
Parts & Service
OEM parts and experienced Customer Service are key to maintaining the integrity and service of your equipment. We offer spare and replacement parts for all of our product lines, as well as a dedicated team of professionals who provide global support, delivered locally. If you need support, contact our team and a dedicated support professional will respond to your request.
-
