Angelus V-Series Model 12V
About Angelus V-Series Model 12V

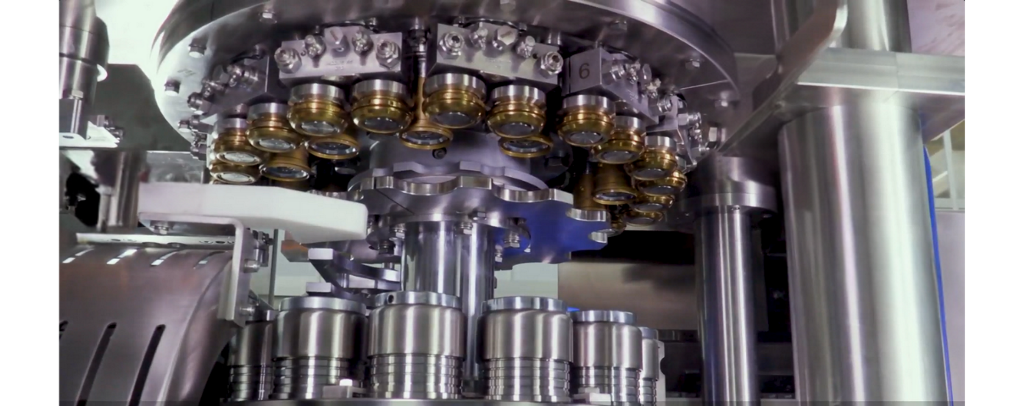

The Angelus V-Series Model 12V seamer is ideal for running cans with diameters from 200 to 300. With speeds from 400 to 1800 cans per minute (CPM) and 12 seaming spindles, this machine is optimized for high-speed beverage applications. Constructed from 304 stainless steel in all product contact areas, this machine offers a clean, sanitary design, well-suited for these projects. This BW Packaging's rotary machine can be configured for random infeed or filler connection.
Contact us today to speak with one of our Angelus experts about the specific requirements of your project. We are happy to assist you.
Product Details
- Runs at speeds from 400 to 1800 containers per minute (CPM)
- Provided with random infeed or filler connection, in either mechanical or servo synchro
- New and improved driven lower lifters
- Motorized turret height adjustment with digital readout
- TN-coated Angelloy® seaming rolls with ceramic bearings

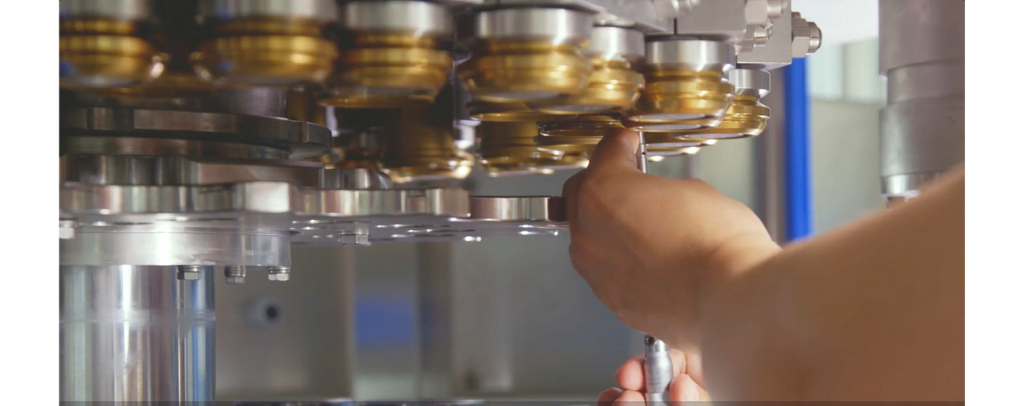

- Easy-adjust chuck plate springs keep downtime to a minimum
- Industry-standard PLC and HMI controls, pilot devices, and E-Stop (Non-OEM)
- NEMA 12 electrical enclosure (standalone), with lockable disconnect ensures operator safety
- NEMA 4X junction box is machine mounted and integrated into guarding

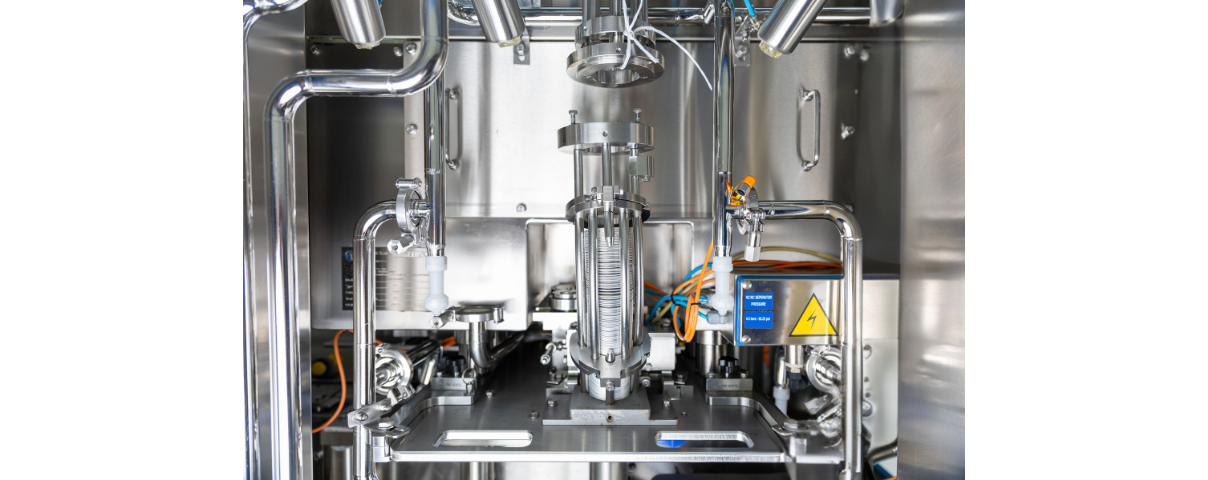

- Under cover gassing control with variable valve for use in seaming beverages
- Ancillary systems are integrated into the guarding enclosure
- Vibration isolation pads on seamer legs
- Comes with basic tool kit
Technical Data
- Mechanical filler connection with cardan shaft
- Seams cans with diameters between 200 and 300 (50.8-76.2 mm)
- Seams cans with heights from 113 to 800 (46.0-203.2 mm)
- Transfer chain pitch is 3.562" or 3.666" (90.5 mm or 93.1 mm)
- Recirculated oil provides the lubrication
- Has a 230/380/400/460 volt, 3 phase, 50/60 hertz motor, with 24 VDC control voltage
Angelus V-Series Model Comparison Table
| Model | Speed Range | Seaming Spindles | Stainless Steel | Lubrication |
Can Diameter |
Can Diameter Min/Max (mm) |
Can Height Min/Max | Can Height Min/Max (mm) | Transfer Chain Pitch (in) | Transfer Chain Pitch (mm) | Primary Market |
| 18V | 500-2500 | 18 | Standard | Oil Recirculation | 200 to 300 | 50.8 to 76.2 | 113 to 800 | 46.0 to 203.2 | 3.562 or 3.666 | 90.5 or 93.1 | Beverage and Food |
| 12V | 400-1800 | 12 | Standard | Oil Recirculation | 200 to 300 | 50.8 to 76.2 | 113 to 800 | 46.0 to 203.2 | 3.562 or 3.666 | 90.5 or 93.1 | Beverage and Food |
| 9V | 300-1200 | 9 | Standard | Oil Recirculation | 200 to 401 | 50.8 to 103.2 | 113 to 800 | 46.0 to 203.2 | 4.75 | 120.7 | Food and Beverage |
| 8V | 250-1000 | 8 | Standard | Oil Recirculation | 200 to 300 | 50.8 to 76.2 | 113 to 800 | 46.0 to 203.2 | 3.876 | 98.45 | Food and Beverage |
| 6V | 175-700 | 6 | Standard | Oil Recirculation | 200 to 401 | 50.8 to 103.2 | 113 to 800 | 46.0 to 203.2 | 5.168 | 131.27 | Food and Beverage |
| 4V | 100-450 | 4 | Standard | Oil Recirculation | 200 to 401 | 50.8 to 103.2 | 113 to 800 | 46.0 to 203.2 | 6.46 | 164.08 | Food and Beverage |
| 3V | 75-350 | 3 | Standard | Oil Recirculation | 211 to 603 | 68.3 to 157.3 | 208 to 910 | 63.5 to 244.5 | 10.336 | 262.53 | Food |
Options
- Optional servo filler drive will sync with main motor bottom drive
- Choose between Chrome-plated steel or Ceram P® filler discharge and seamer infeed transfer wear plates
- Vibration isolation pads, standard on the seamer legs, can have lagging to the floor if needed
Packaging Styles
.png?sfvrsn=b236485f_2)
